DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

  • DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter
  • DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter
  • DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter
  • DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

    Unit Price: 150~700 USD
    Min. Order: 1 Piece/Pieces
    Packaging: standard export in China
    Brand: GAIMC
    Supply Ability: 10000 Piece/Pieces per Month GUF142 Battery Power Supply ultrasonic water flow meter
    Port: any ports in China

Basic Info

Model No.: GUF142W

Product Description

Wireless ultrasonic water meter is designed for water metering settlement and production of a high performance products, with the remarkable features of low power consumption, wide measuring range ratio, stable and reliable measurement .Each component reaches IP68 protection class, to ensure long term operation though water in the inside meter.In addition, the clamp on ultrasonic flow meter is also ultrasonic principle, No need cut off the pipeline to measure the flow.About water flow meter, Electromagnetic flow meter can also be used.

Description


GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

Detail show

GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter


DN15~40(thread type)

Material:copper

GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

>DN50 (Flange type)

Material:Casted ductile iron/Welded carbon steel

GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter


Application

GUF142 ultrasonic water meter widely used in the urban water supply, water resources management, irrigation, landscape management, industrial production and automation industry.

GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

Specification


Item

Specification

Measurement Liquid

Water, Sewage, Seawater(Other liquid need to customized),

liquid should be full of the pipeline

Temperature

0.1-30℃

Working Environment

Temperature:-10-45℃;Humidity:≤100%(RH)

Working Pressure

1.6Mpa (2.5Mpa optional)

The sensitivity of upstream

U3

The sensitivity of downstream

D0

Climatic and mechanical

C class

Electromagnetic compatibility class

E2 class

Communication Interface

RS485/USART/ Infrared

Output Signal

Two Way OCT pulse output/TTL pulse output/One way 4-20mA output

Power supply

Built-in Lithium battery(3.6,19AhV)/DC8-36V power supply

Protection Class

IP68, can work 2 meters under water

Digital Display

Multi line 9 digital accumulative flow,

4 digital display for instantaneous flow, varies of state prompt and units

Data Storage

EEPROM/FLASH automatically record the accumulative flow of last 512 days

Measurement Cycle

Measuring : 1 times/second ; Verification: 4 times/second

Power Consumption

≤2.7AH/Year, 6 years battery life

Flow Range:

Diameter R Flow(m3/h)

Starting

flow rate

minimum

flow rate Q1

transitional

flow rate Q2

Permanent

flow rate Q3

Overload

flow rate Q4

DN15 200 0.003 0.0125 0.020 2.500 3.125
DN20 200 0.0035 0.016 0.026 3.200 4.000
DN25 200 0.007 0.020 0.032 4.000 5.000
DN32 200 0.010 0.032 0.050 6.300 7.875
DN40 200 0.015 0.100 0.160 20.000 25.000
DN50 100 0.030 0.400 0.640 40.000 50.000
DN65 100 0.059 0.630 1.008 63.000 78.750
DN80 100 0.064 1.000 1.600 100.000 125.000
DN100 100 0.094 1.600 2.560 160.000 200.000
DN125 100 0.120 2.000 3.200 200.000 250.000
DN150 100 0.270 2.500 4.000 250.000 312.500
DN200 100 0.315 4.000 6.400 400.000 500.000
DN250 100 0.508 4.000 6.400 400.000 500.000
DN300 100 0.770 6.300 10.080 630.000 787.500

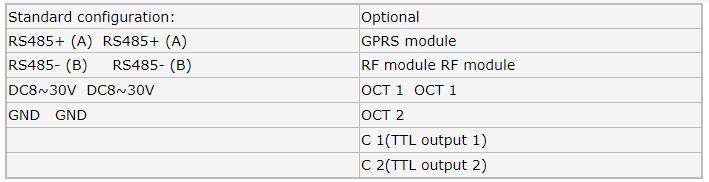

Communication and Signal Output:

GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

External waterproof junction box, Can complete the wiring connection without opening the water meter cover.

GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter
PS:when ordering ,you can choose any two of the above communication interface or output ,lead to the external junction box.

Wireless meter reading

1.Artificial wireless meter reading

Ultrasonic water meters with RF module and hand held meter reading unit can achieve artificial wireless meter reading.

2.IOT Ultrasonic Water Meters

IOT ultrasonic water meters with GPRS module (Battery powered,external power supplied optional), can achieveautomatic wireless meter reading via GPRS data storage cloud.

GUF142 High Accuracy DN50-DN150 Cast Iron Irrigation Ultrasonic Water Meter

Type selection


parameters description remarks
A diameter DN15-40(signal channel)
DN50-300(Dual channel)
B pipe material 1.Casted ductile iron
2.Carbon steel

3.Copper

4.Stainless steel
C Ccommunication interface 0.None

Standard

configuration 1

1.RS485
2.M-BUS
D Output Signal/
External
Power Supply
0.None

Standard

configuration 1

1.DC 8-30V
2.Two-wired system 4-20mA
3.OCT1 (open- collector output 1)
4.OCT1 (open-collector output 1)
5.OCT2 (open-collector output 2)
6.C1 (TTL pulse output 1)
7.C2 (TTL pulse output 2)
E Wireless Meter
Reading
0.None
1.RF communication module(Optional)
2.GPRS module(Optional)


Ps: you can choose any two of the above communication interface or output signal, lead to the external junction box.

Example :GUF142 -DN100-1 -1-1-0

Description: DN100 Ultrasonic water meter, Casted ductile iron material, the communication interface is RS485, external power supply is DC 8-30V, without the wireless meter reading function.
